HOW TO USE

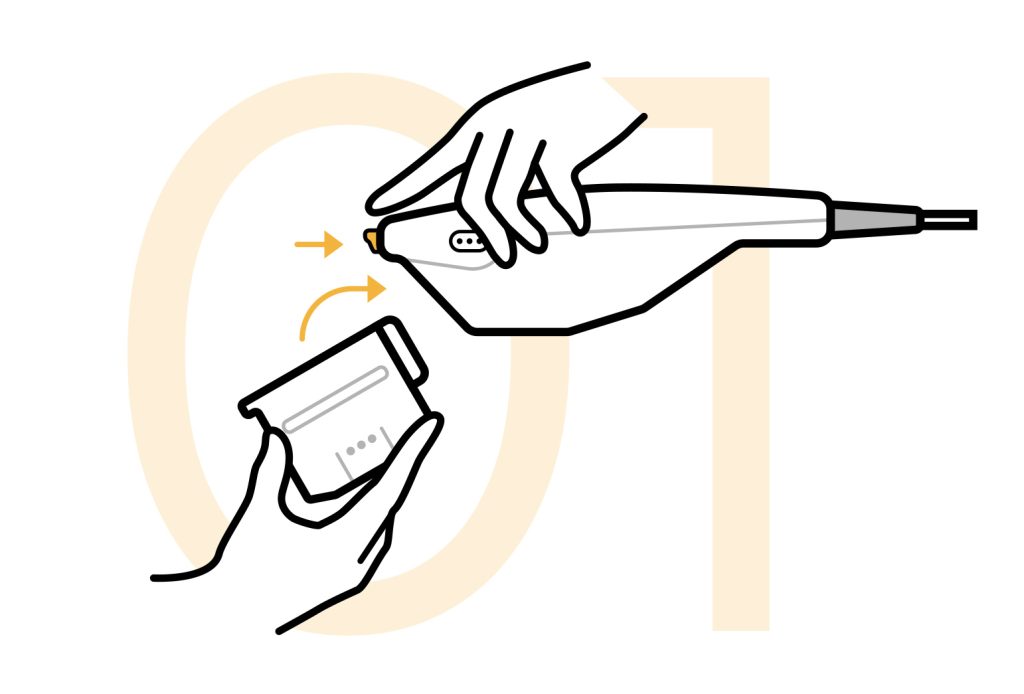

CONNECTING A TRANSDUCER
With the membrane facing away from the handpiece, slide the transducer into the handpiece carefully, until you hear a sound signaling its detection from the control unit.

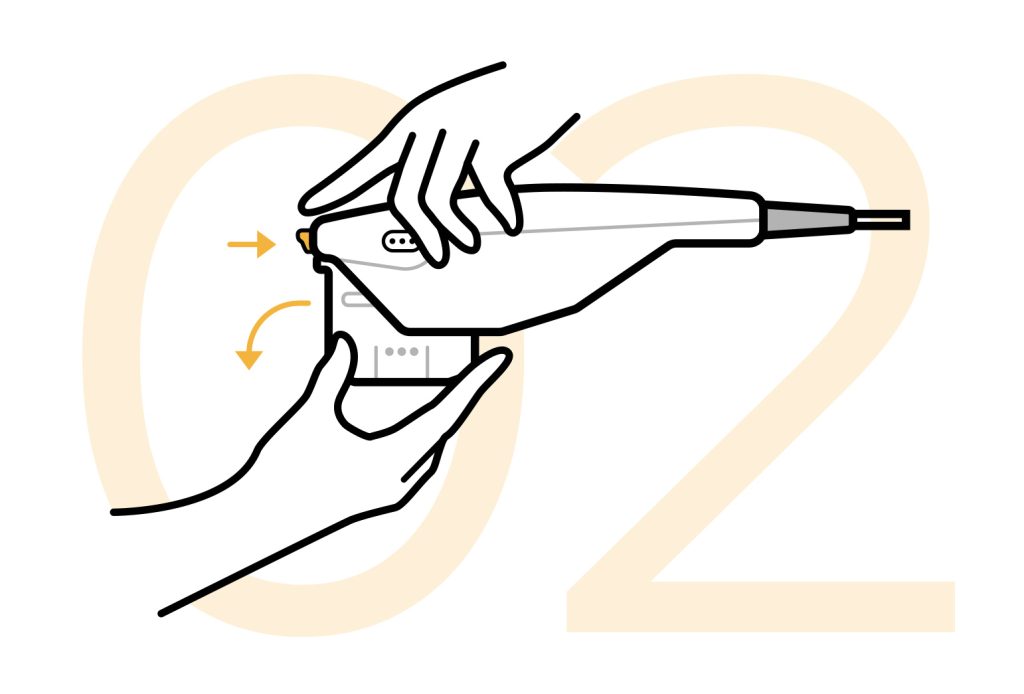

REMOVING A TRANSDUCER
Push the latch towards the top of the handpiece. Then disengage the transducer by sliding it out of the handpiece.
DO'S
DON'TS
DO'S & DON'TS

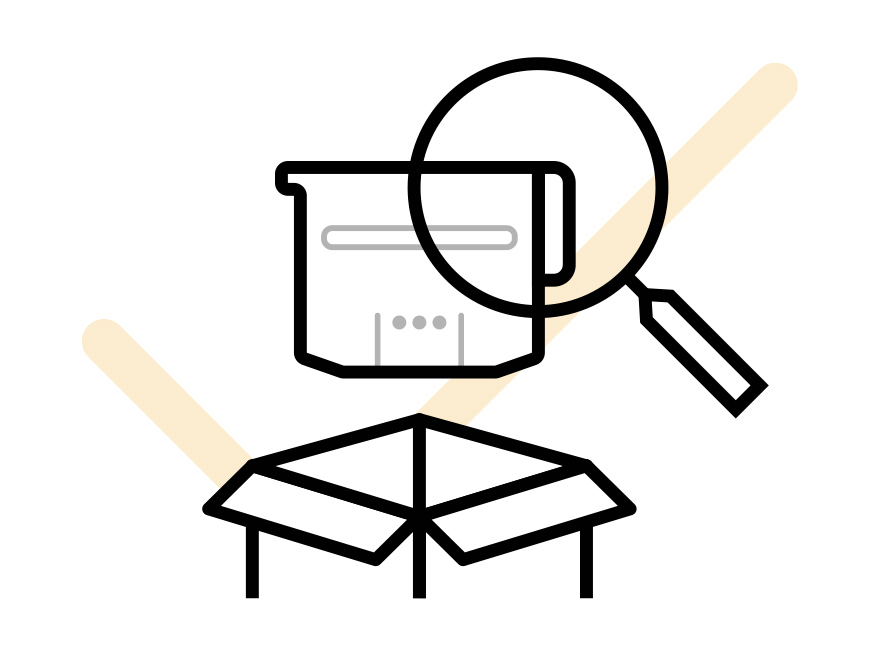

Inspect the new transducer thoroughly. If there is any defect on the membrane of the new transducer, please report to a Merz Aesthetics personnel or any of our distribution partners. We will consider it as an out-of-box failure.

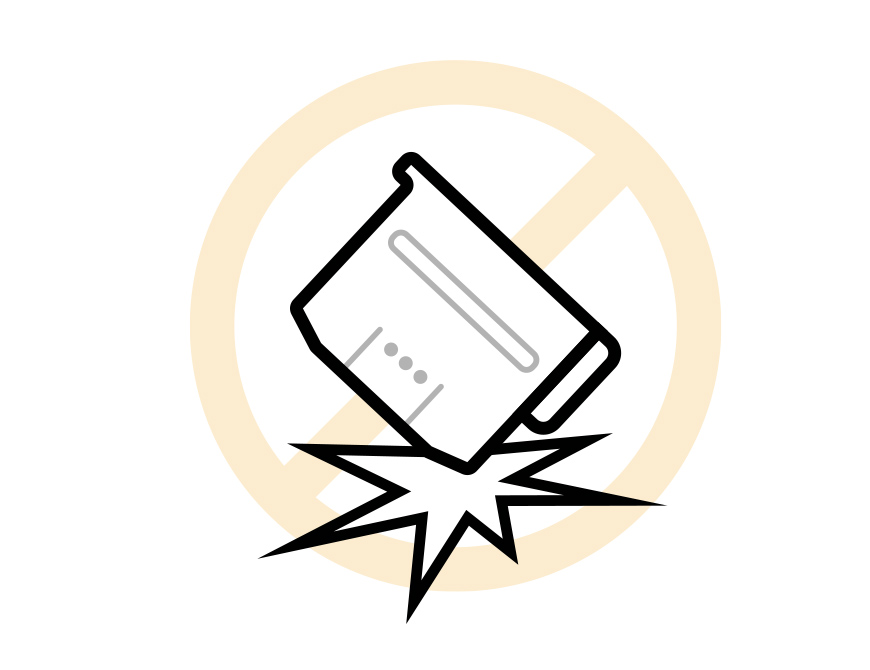

Do not drop the transducer onto the floor or on hard surfaces, as this could damage the transducer's mechanism and membrane.

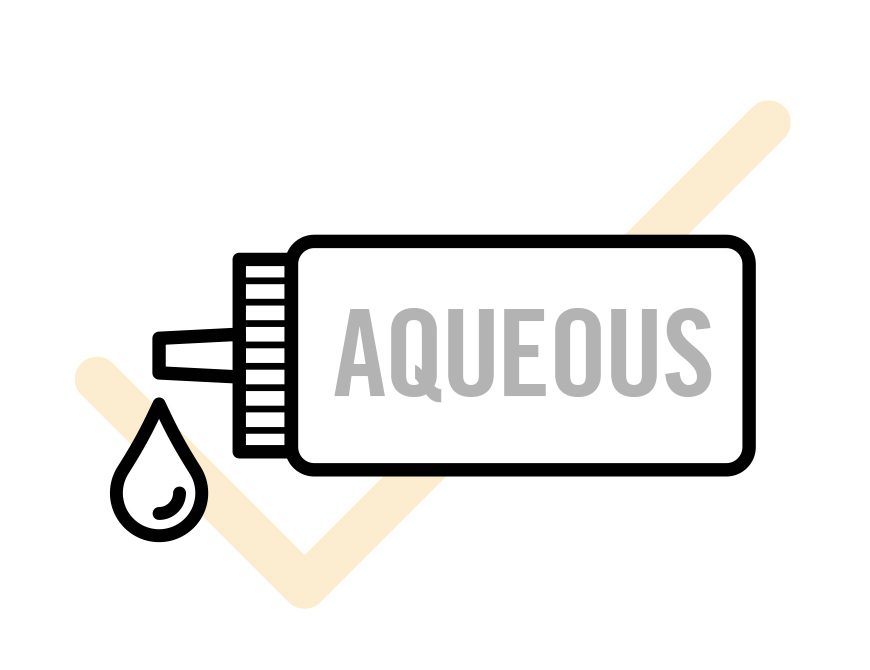

Use aqueous ultrasound gel only, as other lubricants or lotions, particularly mineral oils, could damage transducer and membrane.

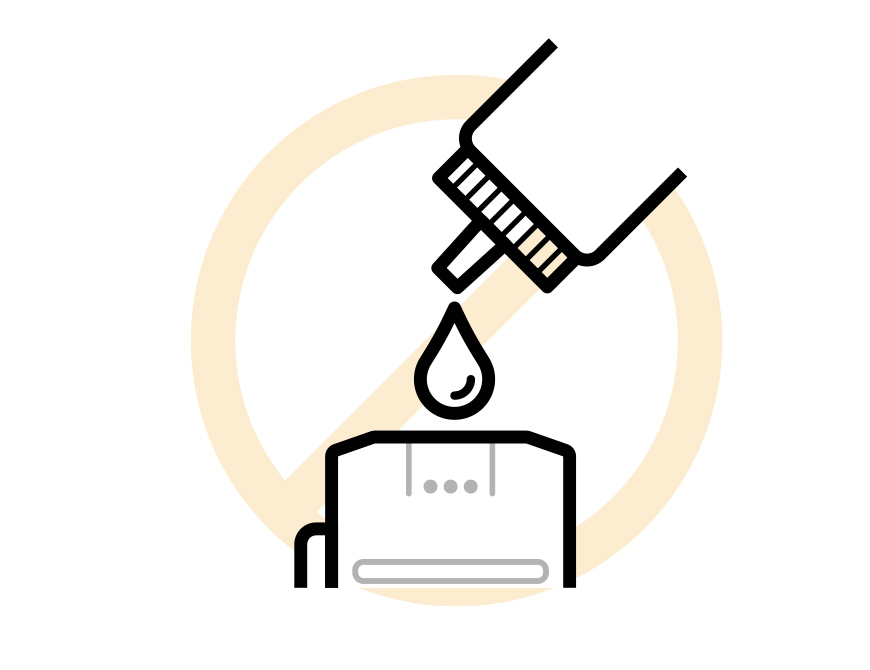

Refrain from applying ultrasound gel directly to the membrane as it may damage both the transducer and membrane.

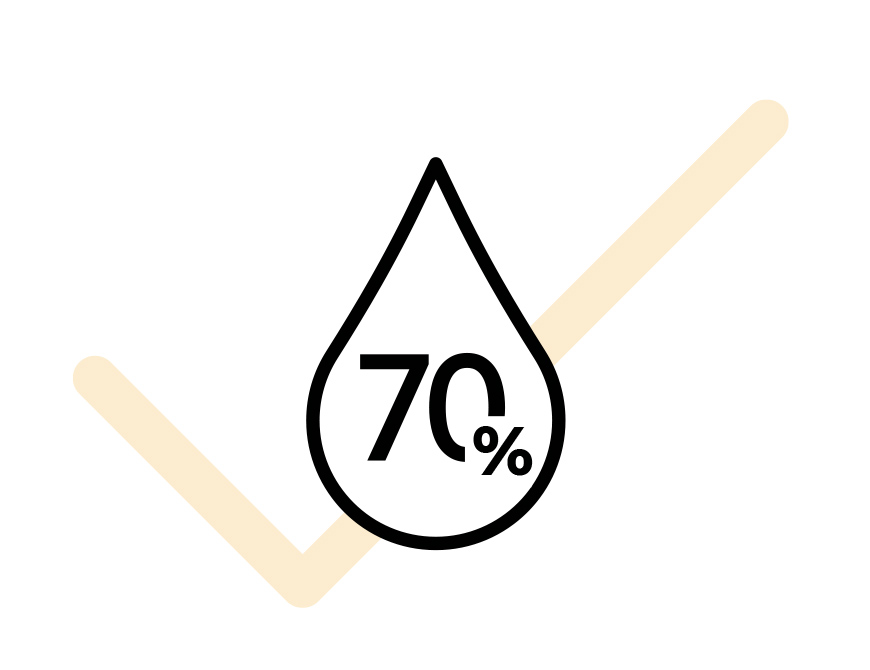

When cleaning the transducer, use a standard 70% isopropyl alcohol prep pad to remove any residual ultrasound gel from the membrane. Avoid using acetone or other solvents, as they may damage the membrane.

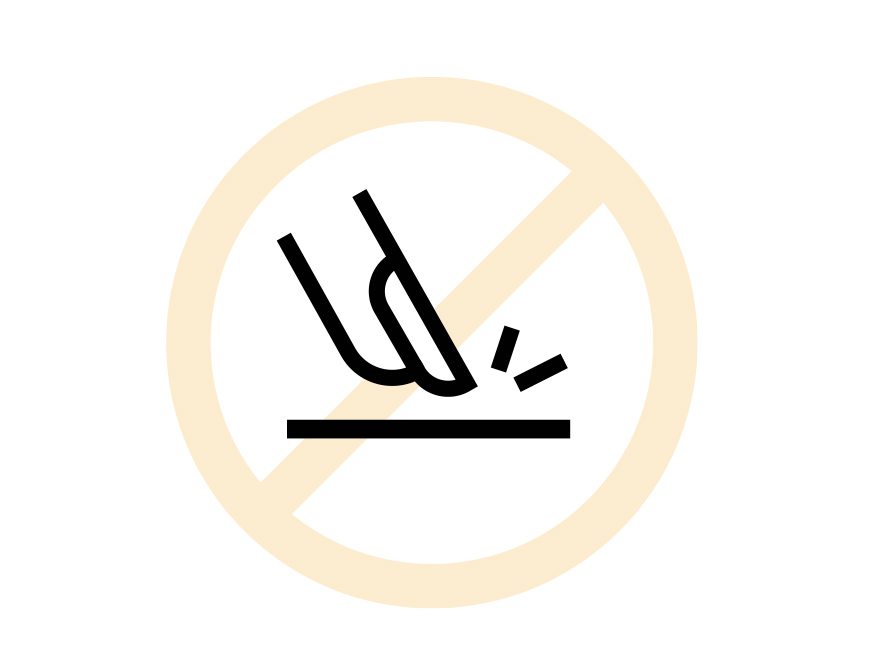

Avoid using hard or sharp objects, including fingernails, to scratch the membrane, as this may cause damage.

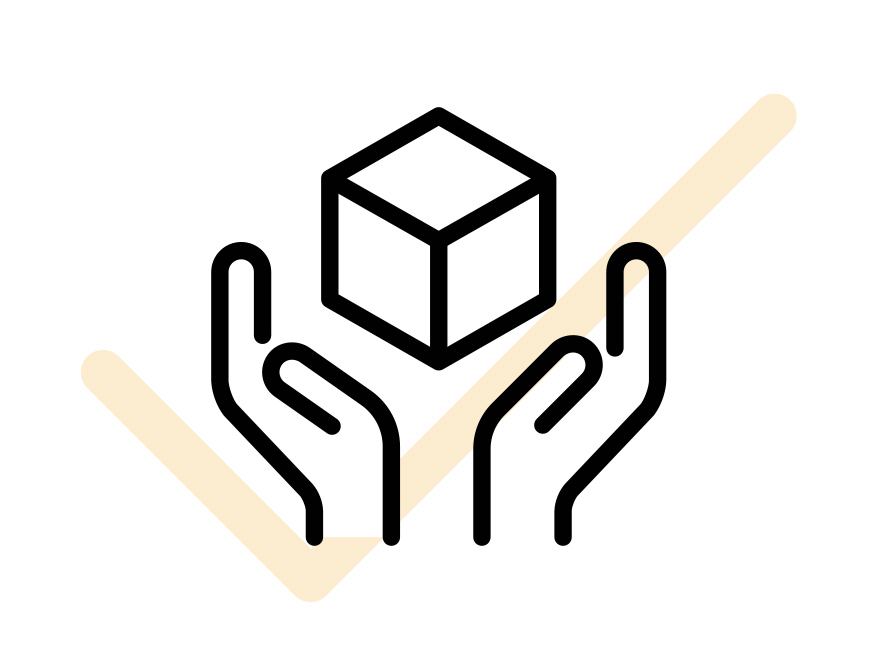

Handle and store the transducer with care. Before placing it back in the cart compartment, make sure it is free of any debris.

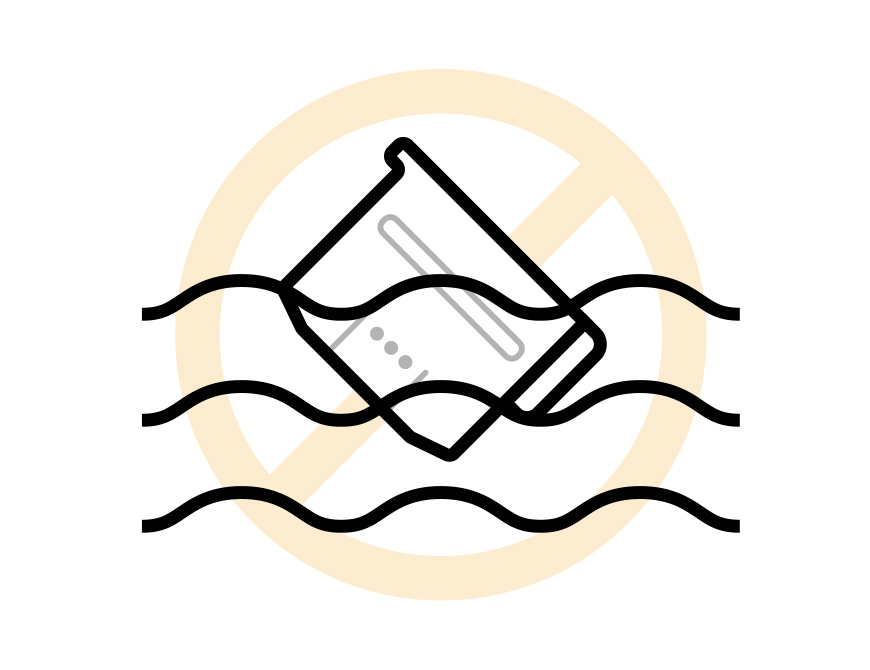

Do not submerge the transducer in any liquid.
Disclaimer: Every effort has been made to ensure the transducers are highly durable. Damage caused by the following conditions will not be compensated or covered by warranty.
